Industrial Valve

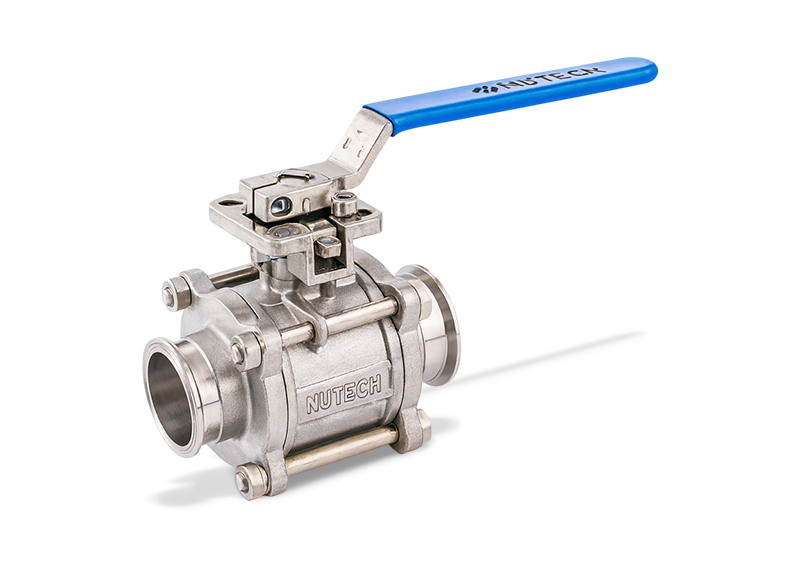

Ball Valve – Screwed

NU-TECH steel ball valves are designed and manufactured to provide maximum service life and dependability. All ball valves are full ported and meet the design requirements of American Petroleum Institute standard API 608 & API 6D. British Standard BS 5351 and, generally, conform to ASME B16.34. Valves are available in a complete range of body/bonnet materials and trims.

Get Quote →

01 / 00

Size & Class

Full port design / reduce port design
Mirror-finished solid stainless steel balls
Anti-static device
Blow-out proof stem
Fire durable construction

Specifications

800# (Sizes 1/2” to 2”)
1500# (Sizes 1/2” to 2”)

Operation

Lever Operated

Available Modifications

Trim changes
Packing and Gasket Change
Customer Specified Coatings

End Connection	Screwed End, Socket Weld End
Design Standard	API 6D, ISO 17292
Testing Standard	API 6D, ISO 5208
Fire Safe Standard	API 607, ISO 10497
Screwed End (NPT) Standard	ASME B1.20.1
Screwed End (BSP) Standard	ISO 7-1
Socket Weld End Standard	ASME B16.11
