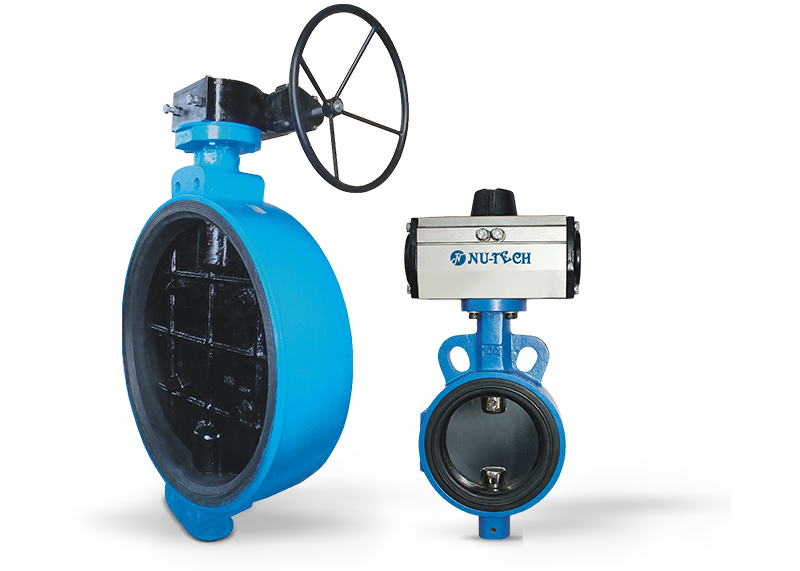

Butterfly Valve
01 / 00

Specifications

  • Design & Manufacture Conform With: API 609, MSS SP-67
  • Connection Dimension Conforms With: ASME B16.5, ASME B16.47
  • Structure & Length Conforms With: API 609, MSS SP-67, ISO 5752
  • Inspection & Test Conforms With: ISO 5208, API 598

Features & Application

Three eccentric butterfly valve series is the newly-developed long-life and energy-saving products. The sealing is metal to metal, which could be changed to be seal ring to metal, stainless steel plate and composite graphite to metal. Under the working condition of high temperature and high pressure, it still has a stable sealing performance. Our company adopts optimization design and new technology, so that the torque is small, gaining the point of energy-saving, labor-saving and reliable sealing performance, thus to ensure the high-reliability of corrosion-resistantance, stand fire and wear-resistantance. This product is widely used in petroleum, natural gas, piped gas and medicine, food industry, industrial environmental water treatment and shipping industry.

Dimensional Data (ANSI Class 150 LB)

DIMENSIONAL DATA'S OF ANSI CLASS 150 LB
NPS 2 3 4 6 8 10 12 14 16 18 20 24 30 36 42 48
DN 50 80 100 150 200 250 300 - 400 450 500 600 750 900 1050 1200
L (mm) 43 48 54 57 64 71 81 92 102 114 127 154 165 200 251 276
L1 (mm) 108 114 127 140 152 165 178 190 216 222 229 267 318 330 410 470
H1 (mm) 112 126 146 170 218 245 290 316 352 386 415 482 622 673 755 866
H (mm) 225 255 285 332 386 427 498 510 450 585 642 693 868 1000 1058 1278
W (mm) 220 270 270 360 400 500 500 500 560 600 600 700 700 700 700 700
MT (Wafer) kg 10 12 16 25 36 60 80 120 160 200 270 420 700 1050 1500 1845
T Nm 55 226 325 615 902 1278 2628 3276 4128 5511 7190 7814 16450 23501 31963 47000

Dimensional Data (ANSI Class 300 LB)

DIMENSIONAL DATA'S OF ANSI CLASS 300 LB
NPS - 3 4 6 8 10 12 14 16 18 20 24 30 36 42 48
DN 50 80 100 150 200 250 300 - 400 450 500 600 750 900 1050 1200
L (mm) - 48 54 59 73 83 92 117 133 149 159 181 - - - -
L1 (mm) - 114 127 140 152 165 178 190 216 222 229 267 318 330 410 470
H1 (mm) - 130 150 185 236 273 313 338 392 420 465 532 642 703 785 906
H (mm) - 265 290 355 418 465 498 547 582 651 704 780 908 1108 1258 1478
W (mm) - 270 270 300 500 500 600 600 600 600 600 700 700 700 1000 1000
MT (Wafer) kg - 15 19 35 42 68 88 144 185 230 330 460 1280 2150 3150 4885
T Nm 3 352 514 1073 1954 2453 3260 5405 8152 10223 13469 22827 39726 63452 85326 126742

Dimensional Data (ANSI Class 600 LB)

DIMENSIONAL DATA'S OF ANSI CLASS 600 LB
NPS 3 4 6 8 10 12 14 16 18 20 24
DN 80 100 150 200 250 300 350 400 450 500 600
L (mm) 54 64 78 102 117 140 155 178 200 216 232
L1 (mm) 180 190 210 230 250 270 290 310 330 350 390
H1 (mm) 152 193 248 295 342 378 412 450 512 563 622
H (mm) 305 338 416 490 580 690 715 823 897 1094 1186
W (mm) 270 360 500 600 600 600 600 600 600 700 700
MT (Wafer) kg 38 58 120 154 297 398 535 780 898 1266 1622
T Nm 575 1043 3673 4520 7061 14236 16947 20473 25218 31861 46095
