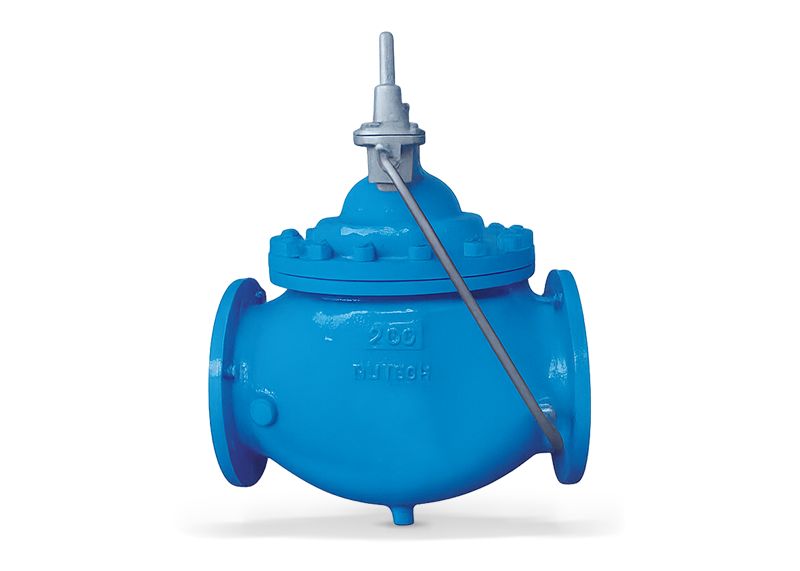

Pressure Reducing Valve (ACV-301)
NU-TECH ACV Pressure Reducing Valves reduce high stream pressure to a constant downstream pressure and maintain outlet pressure across a broad range of flow.
Automatic Control Valve
Feature
- Easily maintained without removal from the line.
- Replaceable seat ring.
- Heavy-duty
- Nylon-reinforced diaphragm.
- Operates automatically offline pressure.
- Diaphragm assembly guided top and bottom.
Combine Features
- Pressure reducing with hydraulic check
- Solenoid (on-off)
- Downstream surge protection
- Upstream pressure sustaining
- Pressure reducing with low flow control
Operation
- Maintains a constant downstream pressure despite fluctuations in demand and inlet pressure.
- Valves can be installed in series or parallel setups for extended flow range or stage-wise pressure reduction.
Specifications
| End Connection | Flanged End, Threaded End |
| Face to Face Standard | Manufacturing Standard |
| End connection Standard | DIN EN 1092-1, ASME B16.5 |
| Testing Standard | API 598 |
| Sizes | 1/2” to 28” |
| Class | 150#, 300#, PN 6, PN 10, PN 16, PN 25 |
| Media | Water |
| Body Material | CI/CS/SS/Alloy Steel etc. |
| Trim Material | SS304/SS316 etc. |
| Soft Seat Material | NITRILE/VITON/EPDM etc. |
