Safety Relief Valve

Pilot Operated Safety Relief Valve (PSRV-201)

NU-TECH Safety Relief Valves are designed and manufactured to provide maximum service life and dependability. All Safety Relief Valves meet the design standards and are available in a complete range of body/bonnet materials and trims.

Get Quote →

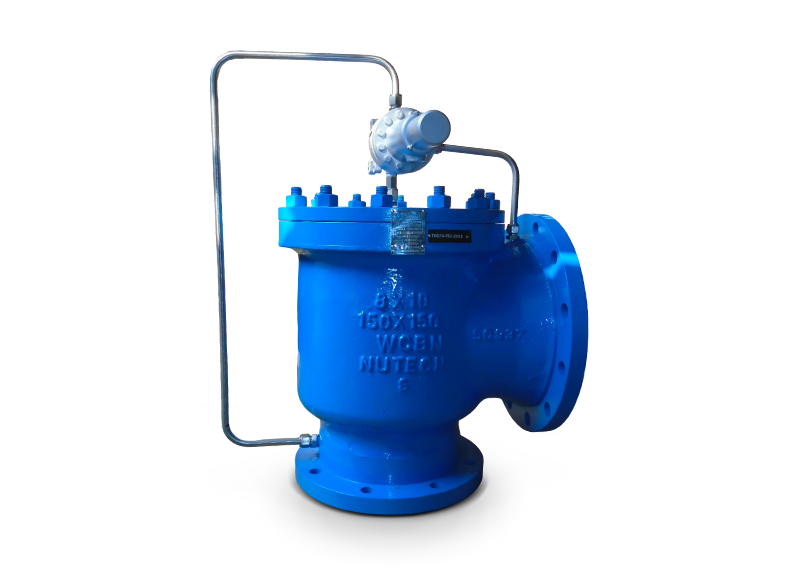

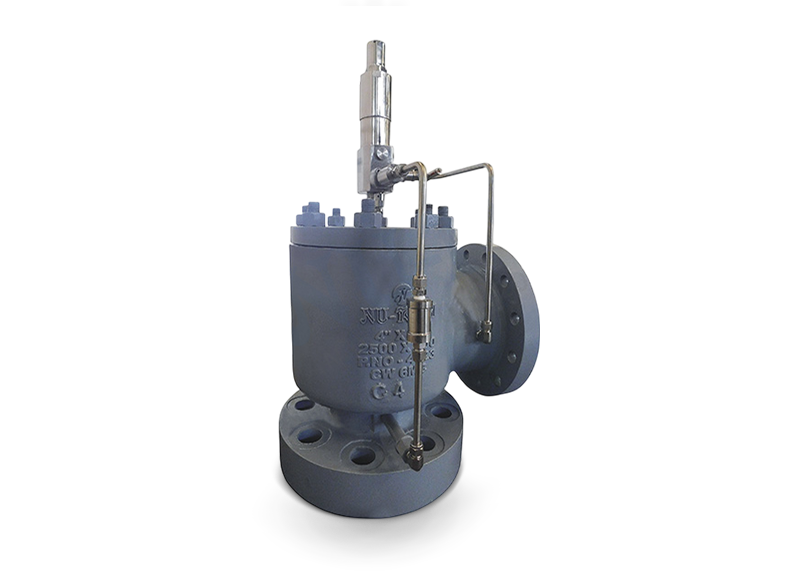

Pilot Operated Safety Relief Valve PSRV-201

01 / 00

Features

Pilot operated safety relief valve
Available with both metal seated & soft seated
Pressure range up to 6500 psig
Designed for protecting low pressure storage vessels & tanks
Used for applications where the certified discharge capacity needs to be reached quickly
For gas applications only
Adjustable blowdown of 2–7% of set pressure conforming to ASME (adjustable beyond API standards up to 15%)

Specifications

End Connection	Flanged End
Design Standard	API 520, ASME BPVC SEC VIII DIV-I
Testing Standard	API 527
Flange Standard	ASME B16.5
Media	Vapour and Gases
Size	1” x 2” to 8” x 10”
