Pressure Reducing Valve

Two Stage Pressure Regulator (HP-290)

NU-TECH series HP-290 is specially designed for high-purity gas handling in corrosive environments and semiconductor manufacturing. Common applications include epitaxial reactors, diffusion furnaces, and research laboratories where precise, contamination-free pressure control is required.

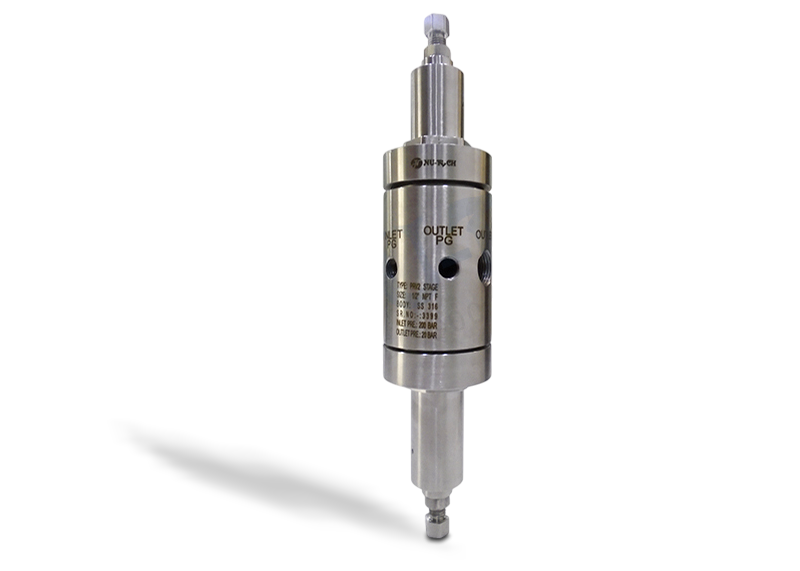

Two Stage Pressure Regulator HP-290
01 / 00

Specifications

Media All gases (corrosive & non-corrosive) requiring high purity regulation
Max Inlet Pressure 6000 psig
Outlet Pressure Range 1-25 / 2-50 / 10-200 / 20-300 / 100-600 psig
Flow Capacity Cv = 0.06
Inlet Size 1/4", 3/8", 1/2" NPT/BSP
